Sky Port

Sky Port gives you private HPC on demand. You own the workload management.

Submit a job. Sky Port creates a private cloud cluster for that workload, runs your containers, moves data, monitors progress, and removes the resources when the job ends. You do not share a fixed cluster with other users. You get dedicated nodes for the life of the job.

Sky Port is open-source (BSD-3-Clause) and vendor-independent. It is built for HPC workloads: multi-node MPI, GPUs, fast interconnects, and checkpoint-friendly runs. Open Workload is the community behind Sky Port.

Quick start · HPC features · Try Jupyter · Source on GitHub

Why Sky Port

• Private HPC when you need it: each job gets its own cloud partition and nodes; resources go away when the job finishes (unless you keep them for debug).
• HPC-ready by design: MPI over PMIx, GPU CDI, InfiniBand/RDMA attach, storage mounts, metrics, and optional checkpointing.
• One workflow: no separate steps to create VMs, forward ports, sync files, and clean up afterward.
• You choose the resources: pick container image, node flavors and compute node images (you pay the cloud provider directly).
• Replaceable components: Terminals (clients) and Gates (cloud connectors) speak documented REST APIs, so third parties can add user interfaces or cloud backends without forking the core.
• Certificate-based trust: Terminals, Core, and Gates authenticate with mutual TLS, not shared passwords.

HPC features

• MPI via PMIx: start multi-node ranks with swm-task --pmix. Sky Port runs per-node swm-pmix and injects PMIX_* / SWM_* for MPI apps.
• GPU integration: request GPUs with #SWM gpus. NVIDIA devices enter the job container through CDI (hard fail if CDI is missing).
• InfiniBand and RDMA: when the host has IB/RDMA, Sky Port attaches it to job containers automatically (CDI or device nodes, plus memlock caps).
• Storage automount: attach cloud blob storage with #SWM storage directive for inputs, outputs, scratch filesystem and checkpointing.
• Job monitoring: Porter samples CPU, memory, and GPU (NVML) usage; Sky Port exports Prometheus metrics and a REST job metrics API.
• Checkpointing: optional DMTCP/MANA checkpoints for MPI jobs (#SWM checkpoint dmtcp).

See JOBS.md, CONTAINERS.md, ACCOUNTING.md, and CHECKPOINTS.md.

Quick start

Pull the release container (Core + Gate):

podman pull openworkload/skyport:latest

From a swm-core checkout, start the Sky Port pod:

make start-release-container
# later: podman pod start skyport-pod

Talk to a running Core with the console terminal:

pip install swmconsole
swmconsole --help
swmconsole --job-list

How you use it

1. Interactive Jupyter notebooks: Jupyter terminal (swmjupyter on PyPI) spawns JupyterLab on private cloud VMs through Sky Port.
2. Batch / scripted jobs: write a #SWM job script and submit with swm-console.
3. Custom terminals: build against the Python client (swmclient on PyPI) and the Core REST API.
4. Your own cloud gate: implement a Gate for your compute resources (Azure is the reference integration today).

Job script sketch

#!/bin/bash
#SWM name example-mpi-job
#SWM nodes 3
#SWM gpus 1
#SWM flavor Standard_NC6s_v3
#SWM cloud-image ubuntu-hpc/2404
#SWM container-image ubuntu:24.04
#SWM storage swmblobcontainer
#SWM input-files data.dat
#SWM output-files results.out

export PATH="/opt/openmpi/bin:${PATH}"
swm-task --pmix ./run_my_mpi_app

Directives cover nodes, GPUs, flavors, images, storage, file transfer, ports, and checkpointing. Full reference: JOBS.md.

Software stack

Component	Repository	Role
Core	swm-core	Workload manager daemon: Terminal ↔ Gate orchestration
Scheduler	swm-sched	Scheduler plugin: builds execution timetables
Gate	swm-cloud-gate	Cloud provider integration (Azure)
Jupyter terminal	swm-jupyter-term	JupyterHub spawner for Sky Port jobs
Console terminal	swm-console-term	CLI for jobs, flavors, images, and remotes
Python client	swm-python-client	Wrapper around the Core REST API

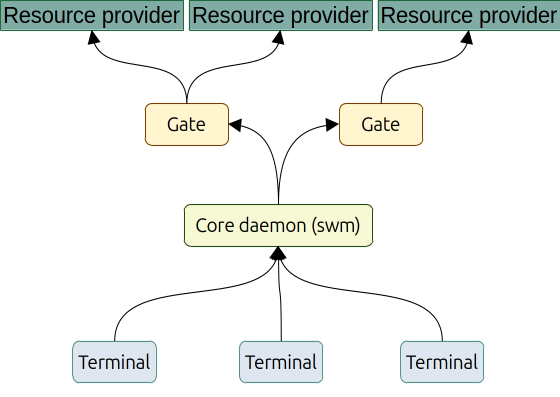

Design

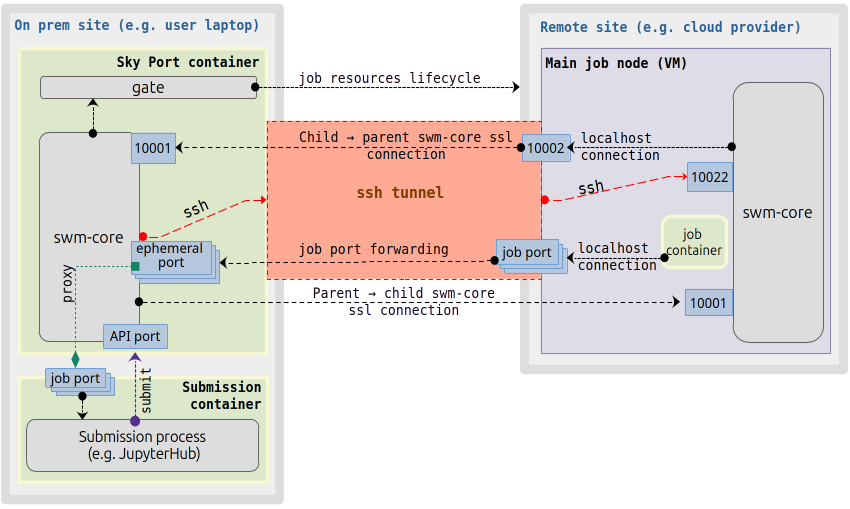

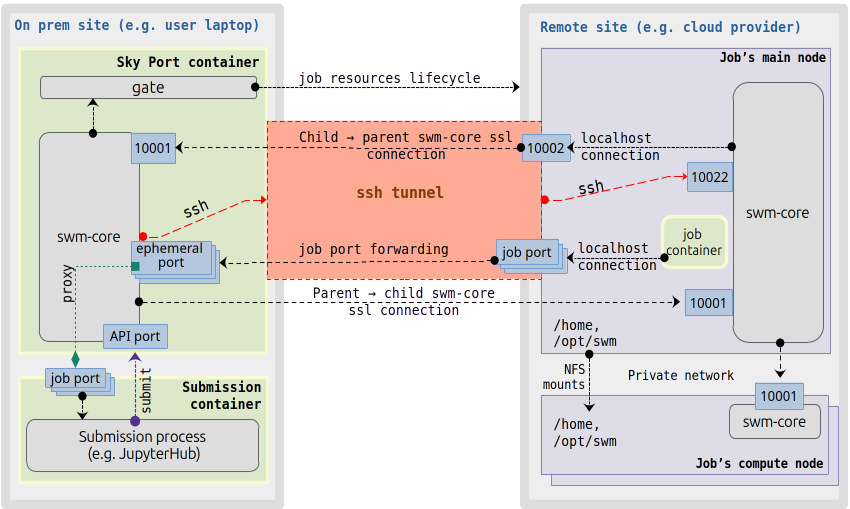

Network connections between terminal, core, gate, and cloud provider:

Supported platforms

Sky Port targets Linux on ARM64 and x86_64. A reasonable effort is made across major modern distributions, but validation is currently limited to recent Ubuntu on x86_64.

Docs and contributing

• Install
• Security (CA, mTLS, SSH/SFTP)
• Containers (Podman, GPU, IB/RDMA)
• Job scripts (MPI, storage, GPUs)
• Job metrics
• Checkpointing (DMTCP/MANA)
• Azure setup
• Build from source

Bug fixes are welcome without prior discussion. For new features, gates, or terminals, open an issue first.

Software is licensed under BSD-3-Clause. Code of conduct.
